Save time, costs, prep, mess & labour.
Efficient RSJ Plasterboard Installation
Slot in place with one push fresh out the box.
If you work with extensions and new build properties often, No more noggins will save you days of labour throughout the year.
No more need for wood
Our brackets streamline the process of boxing in steel beams for plasterboard, helping construction professionals work more efficiently.
Dimensions
RSJ Height Dimensions to Fit:
203mm ( to fit web 185mm-188mm )
Using tin snips these can be cut down to
fit web size 160mm - 185mm
Lightweight Material:
0.7mm Zintec: Melting point 1350 - 1530 C

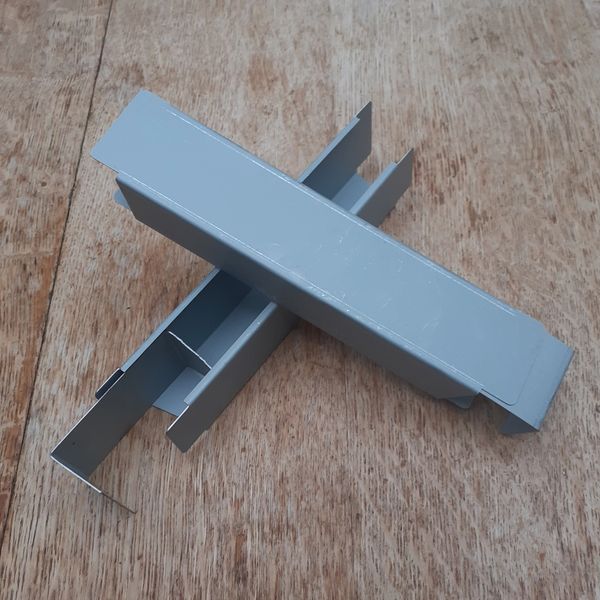

noggin with bottom bracket to fix plasterboard to underside of steel
RSJ Height Dimensions to Fit:
203mm ( to fit web 185mm-188mm )
Lightweight Material:
0.7mm Zintec: Melting point 1350 - 1530 C

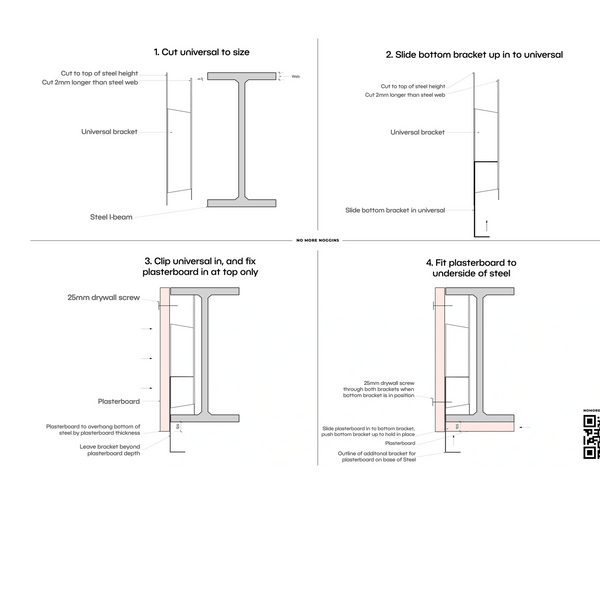

instructions for fixing plasterboard to underside of steel

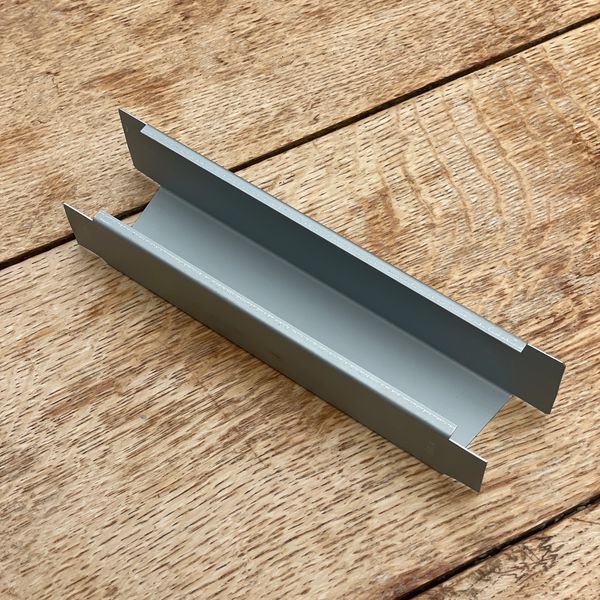

Universal bracket to fit web 185mm-188mm
( 160mm - 185mm by cutting to size with tin snips)
When using the universal bracket the internal section should be cut 2/3mm longer than the web.
Use the first bracket that is cut to size as
a template for the remaining brackets.
If you would like us to cut to size,
please give RSJ dimension in contact section.
SMALL & Wholesale packages available
